A'LSYON series

High performance concrete or resin grouting bolts.

The A'LSYON series presents 3 versions :

A'LSYON F ( F for Forged ) which has a forged head.
alsyon f, forged bolt

A'LSYON C ( C for Common ) which has a threaded head.
alsyon c, common bolt

A'LSYON R ( R for Reinforced ) which has a forged threaded head.
alsyon r, reinforced bolt

The A'LSYON series is produced in 3 different steel grade :

  • Steel FeE B500B according to NFA 35016 ( reinforced steel ).
  • Steel E360 according to EN 10025-2 ( smooth steel ).
  • Stainless steel ( smooth or reinforced steel ).

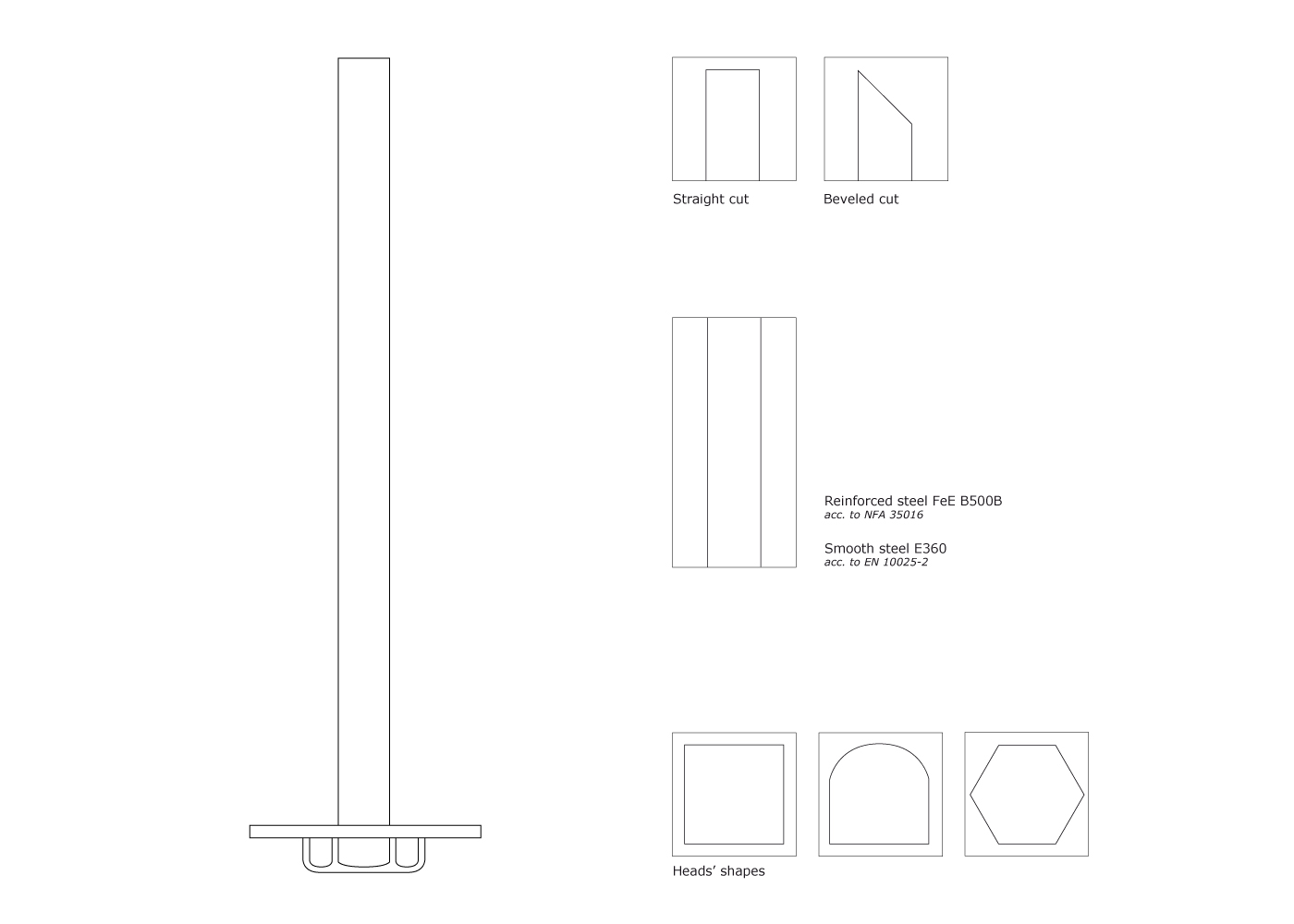

A'LSYON F - FORGED - Forged head

alsyon f, forged head

+ The resistance of the head is stronger than the rod's.

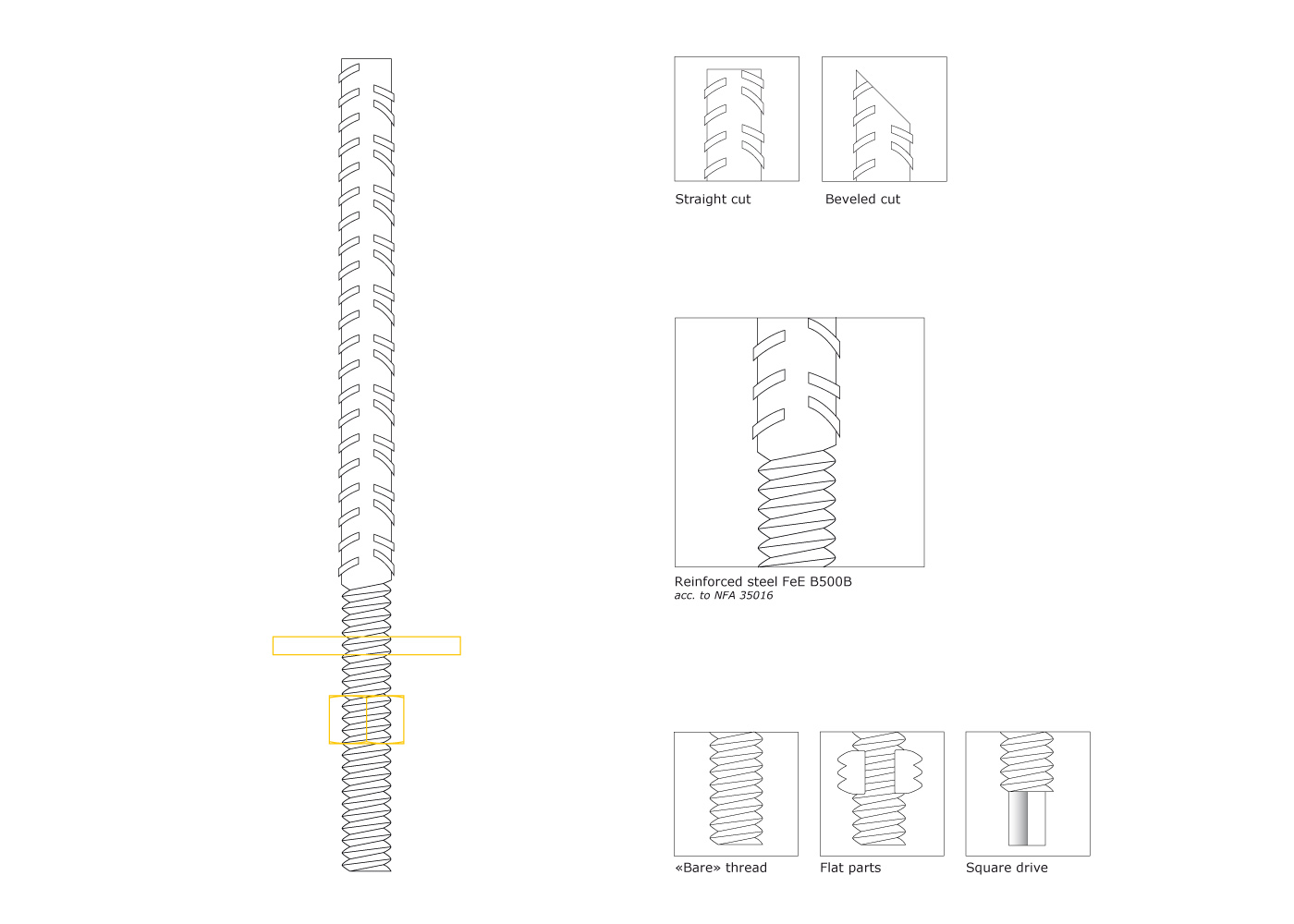

A'LSYON C - COMMON - Threaded head

alsyon f, forged head
- A'LSYON C thread is weaker by 15 to 30% than the rod.

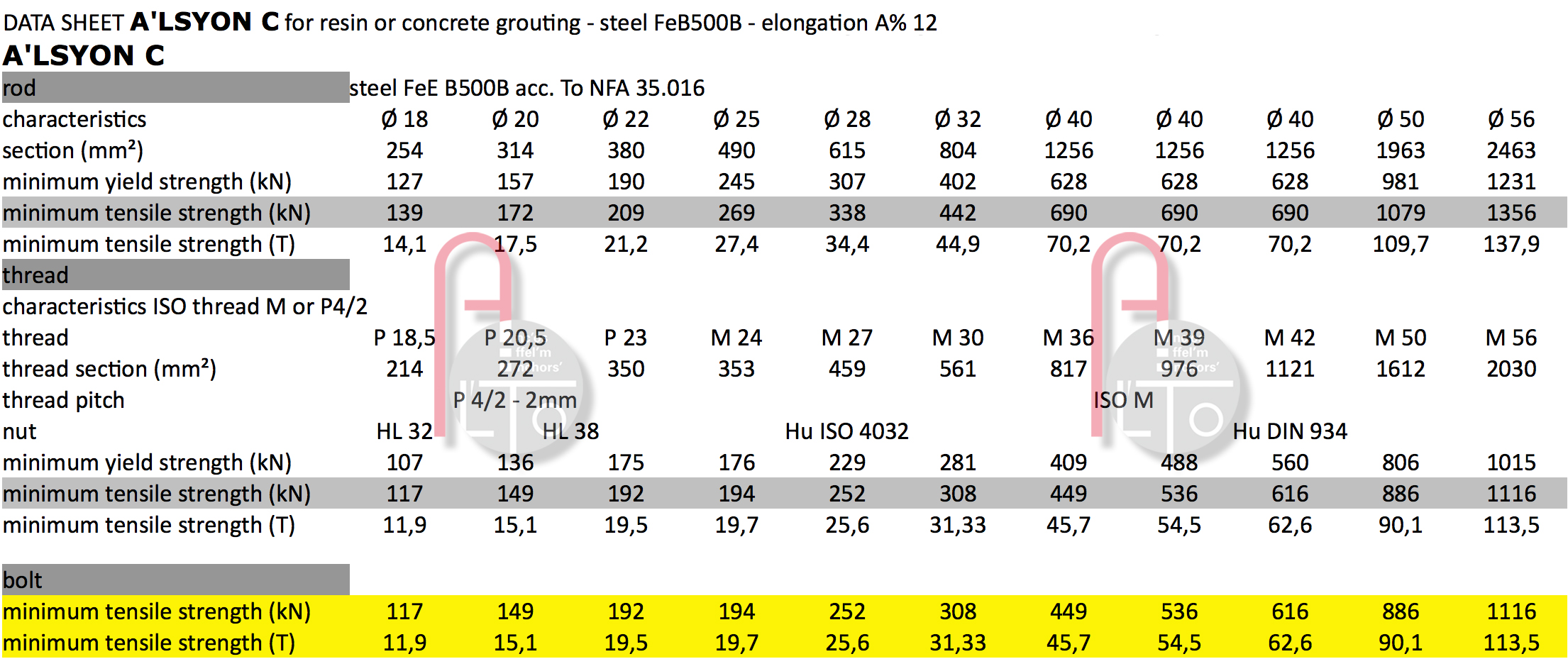

A'LSYON C - DATA

a'lsyon c, resin or concrete grouting, feb500b

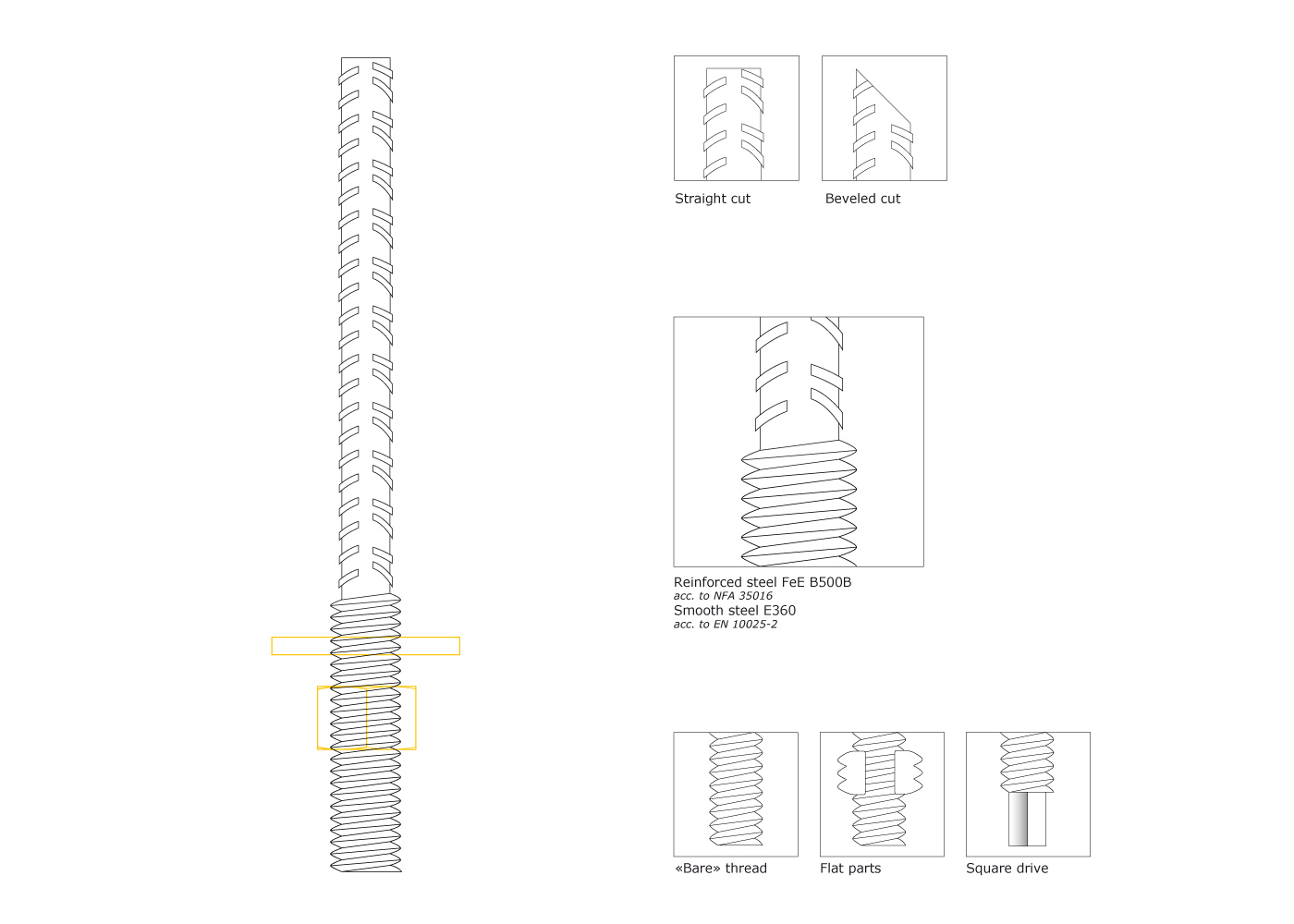

A'LSYON R - REINFORCED - Forged threaded head

alsyon r, forged threaded head
+ A'LSYON R thread is stronger by 10 to 20% than the rod.

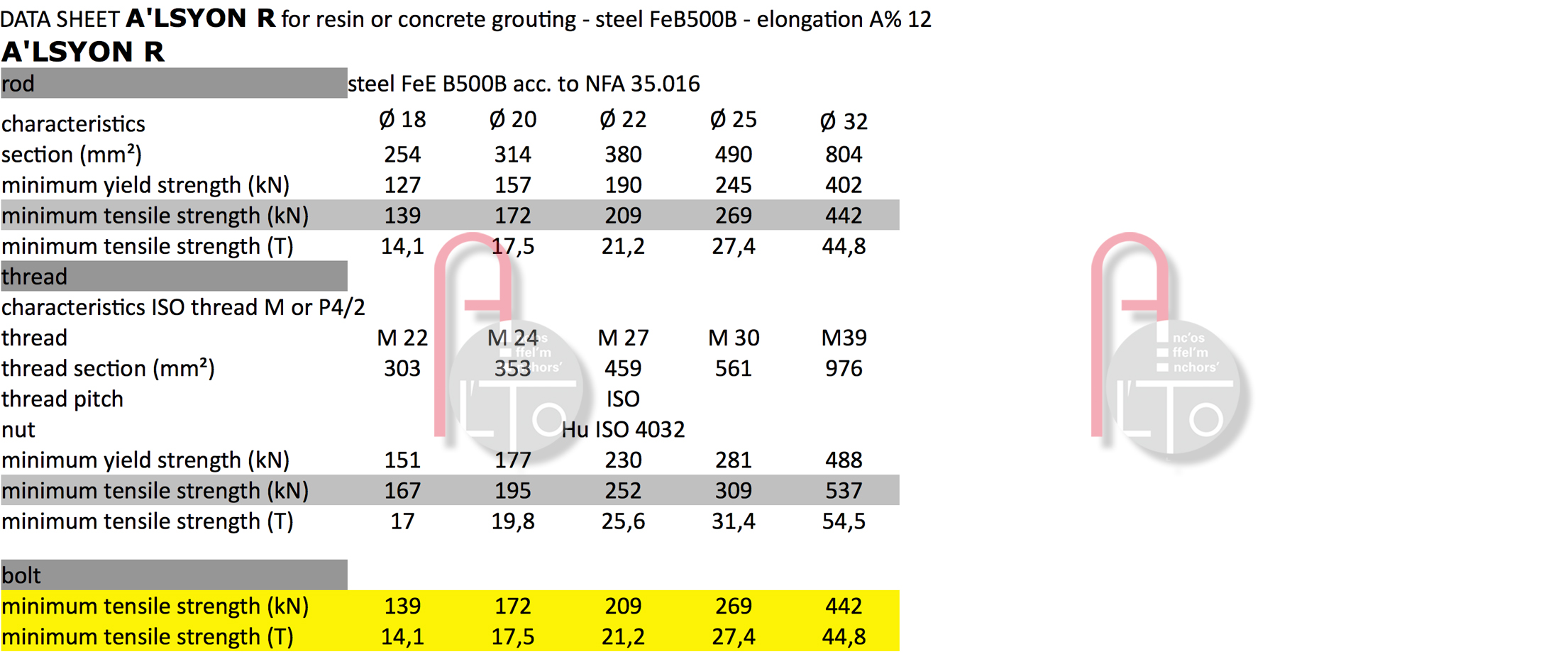

A'LSYON R - DATA

alsyon r, fresin or concrete grouting, feb500b

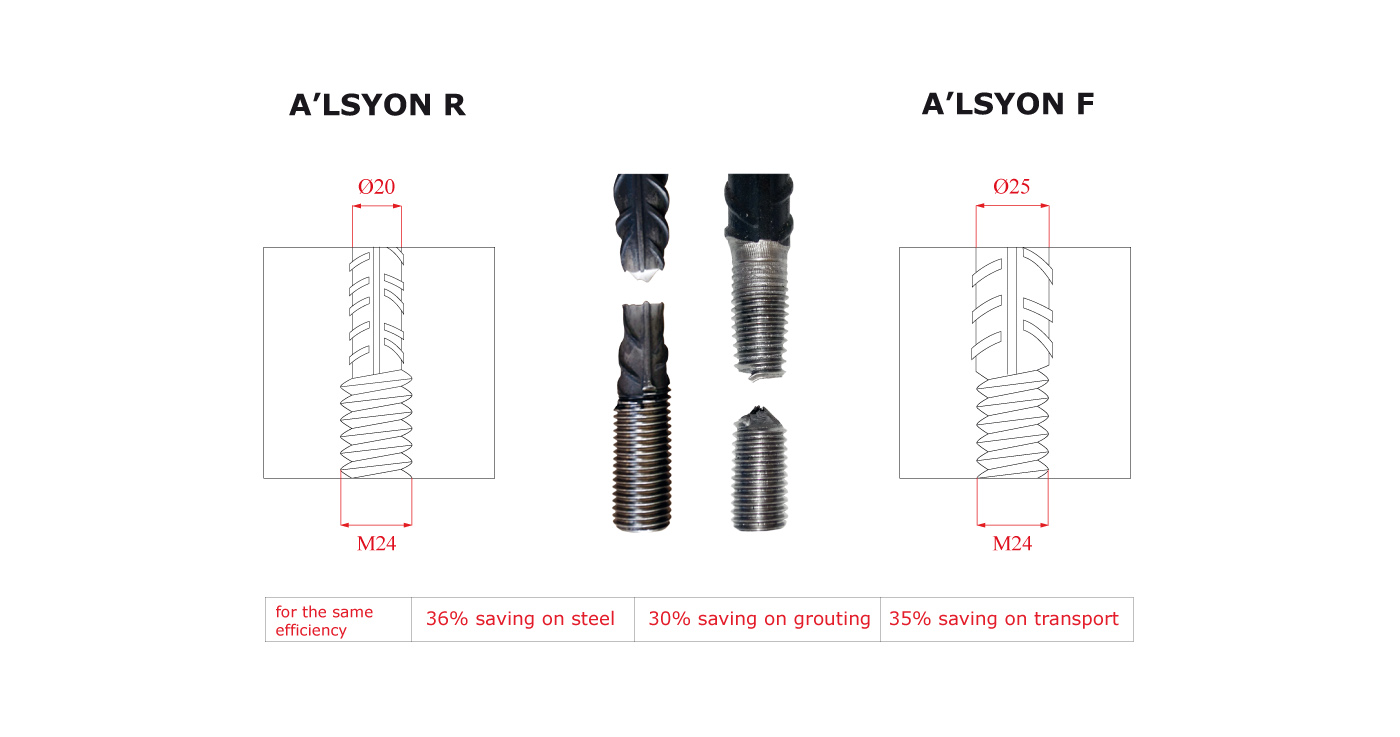

A'LSYON R / A'LSYON C - COMPARATIVE

alsyon r, alsyon f, bolt comparative
+ For the same resistance as with standard bolt as A'LSYON C, A'LSYON R allows:
steel saving of 20 to 65% according to diameters.
smaller borehole which also means grouting saving.

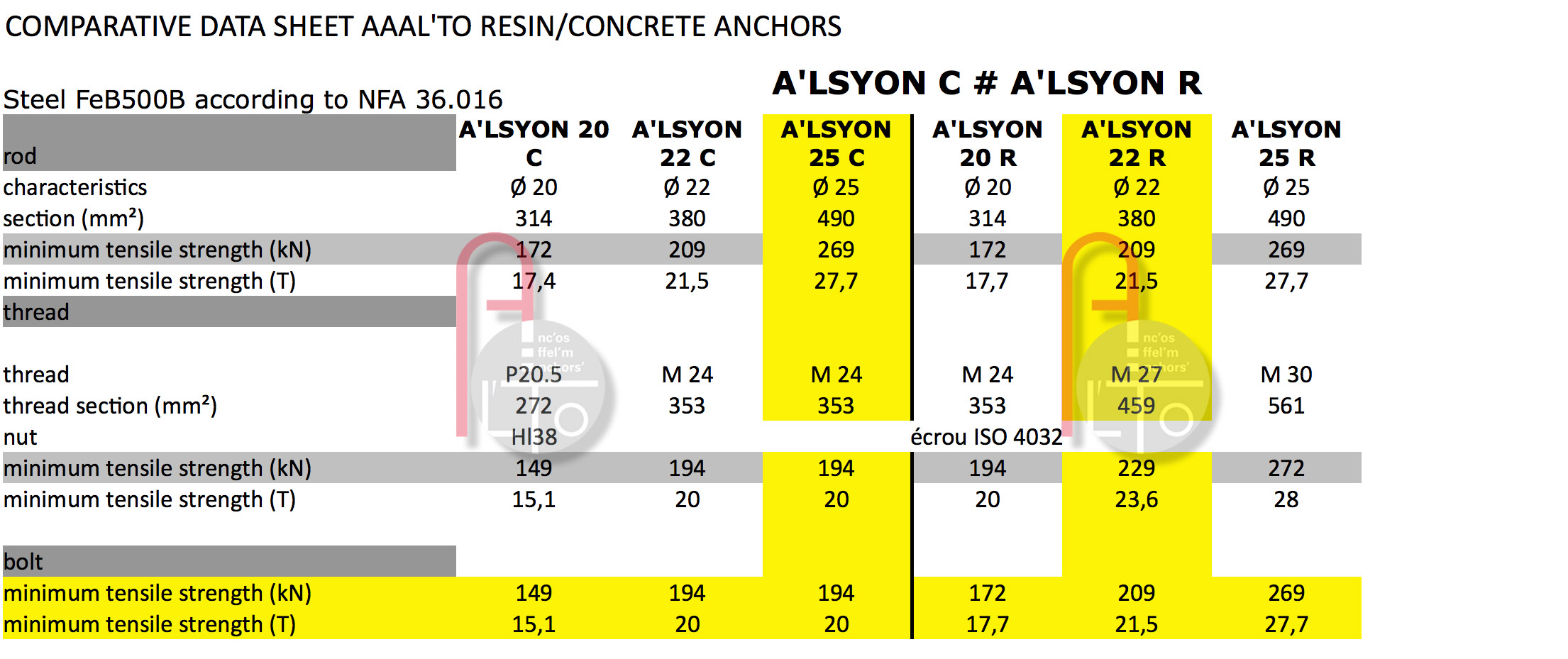

A'LSYON R / A'LSYON C - DATA

alsyon r, resin, concrete, anchor

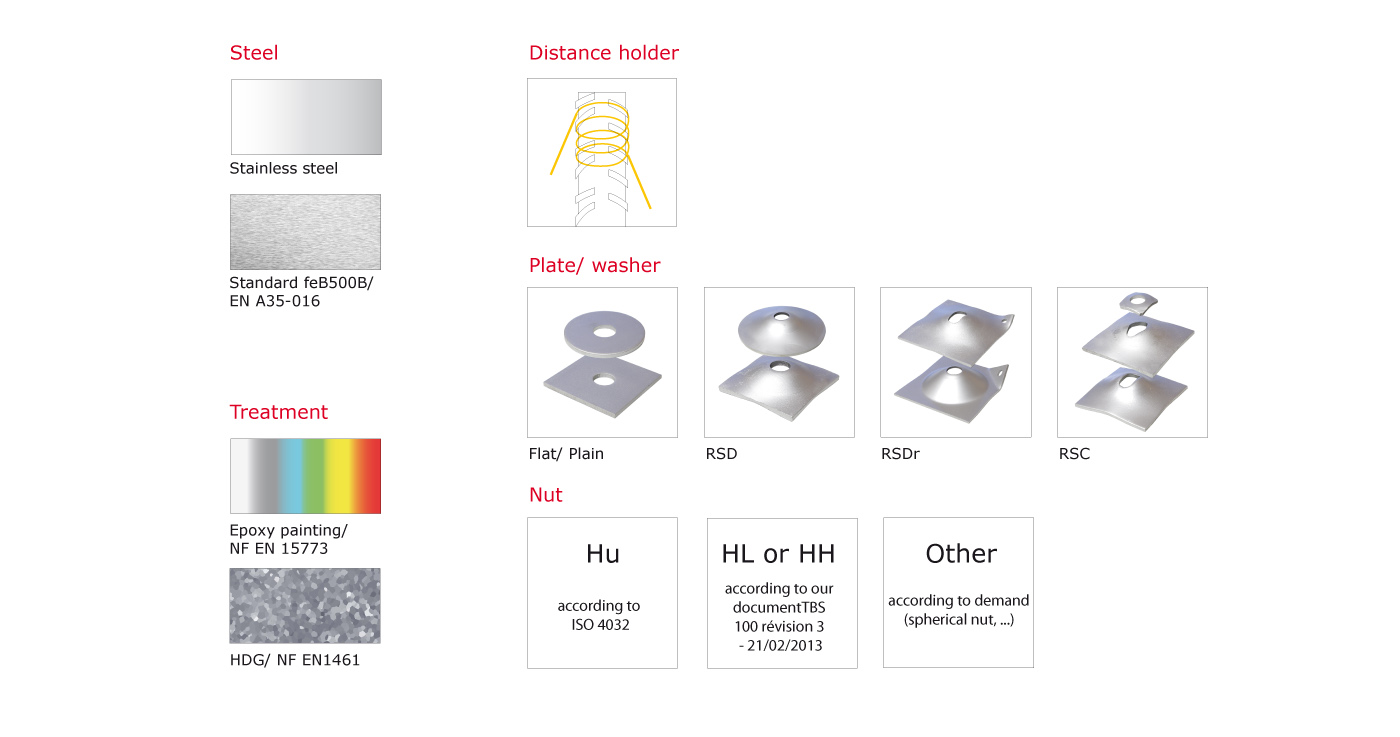

A'LSYON series - OPTIONS

alsyon options, feb500b, stainless steel, epoxy painting, hdg, hu nut, hl nut, hh nut

AAAL'TO presents:
Quality products with much security.
Competitive price for unique performance.
French manufacturing with ISO 9001V8 certification in progress.
